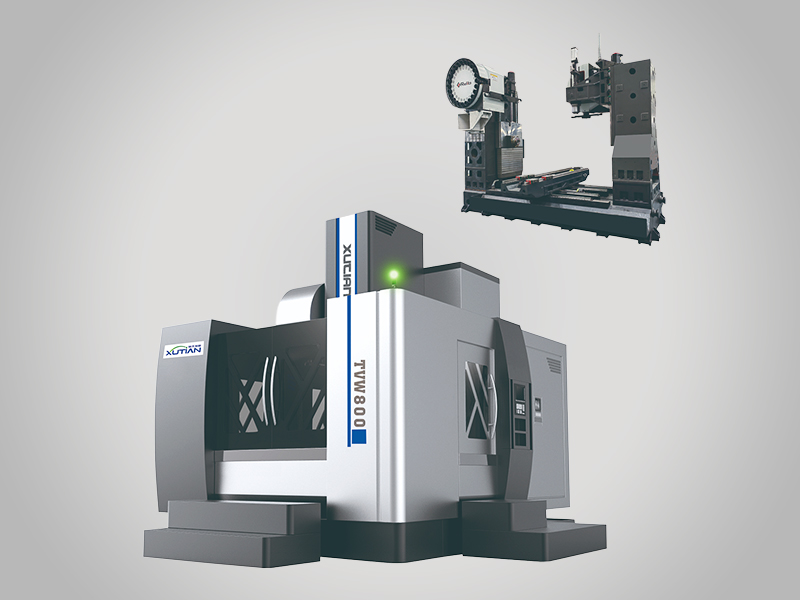

TVW SERIES

TVW系列主要技術(shù)參數(shù)

Item		Unit	TVW500	TVW630B	TVW800	TVW1000
Worktable	Worktable Size (L×W)	mm	500×500	630×630	800×800	1000×1000
	Max. Worktable Load	kg	1200	2500	5000	6000
	T-slot (No. of slots-slot width×pitch)	mm	5-18×100	5-18×125	5-22×135	5-22×240
	Max. Worktable Speed	r/min	0–16.6	0–16.6	0–11.1	0–11.1
	Worktable Indexing Angle	°	360×1°	360×1°	0.001°	0.001°
	Max. Workpiece Swing Diameter	mm	1200	1500	2200	2500
Travel Range	Worktable Lateral Travel (X-axis)	mm	1100	1300	1500	1800
	Worktable Longitudinal Travel (Y-axis)	mm	700	600	800	800
	Vertical Headstock Travel (Z1-axis)	mm	720	800	800	800
	Horizontal Headstock Travel (Z2-axis)	mm	600	600	600	600
	Distance from Vertical Spindle Center to Column Guide	mm	765	836	940	940
	Distance from Vertical Spindle Face to Worktable Surface	mm	150–870	160–960	200–1000	200–1000
	Distance from Horizontal Spindle Center to Worktable Surface	mm	-140–600	-150–600	80–780	80–780
	Distance from Horizontal Spindle Face to Worktable Center	mm	310–1010	415–1015	390–1090	390–1090
Spindle	Spindle Type	/	Direct Drive	Belt Drive	Belt Drive	Belt Drive
	Max. Spindle Speed	r/min	8000	6000	6000	6000
	Spindle Taper	/	BT40/φ150	BT50/φ190	BT50/φ190	BT50/φ190
Feed Rate	Rapid Traverse Speed (X/Y/Z1/Z2)	m/min	24/24/20/20	24/24/20/20	24/24/20/20	24/24/20/20
	Cutting Feed Rate	m/min	1–7	1–7	1–7	1–7
Motor	Vertical Milling Head Spindle Power	kW	7.5/11	15/18.5	15/18.5	15/18.5
	Horizontal Milling Head Spindle Power	kW	7.5/11	15/18.5	15/18.5	15/18.5
	Servo Motor Torque (X/Y/Z1/Y2)	N.m	18/18/28B/18B	28/28/28B/28B	28/28/28B/28B	28/28/28B/28B
	Coolant Pump Motor Power	kW	0.55	0.55	0.55	0.55
Accuracy	Positioning Accuracy	mm	0.008/300	0.008/300	0.008/300	0.008/300
	Repeat Positioning Accuracy	mm	0.005	0.005	0.005	0.005
System	CNC System	/	SYNTEC	SYNTEC	SYNTEC	SYNTEC
Power Supply	Power Supply	KVA	≥35	≥50	≥60	≥70
Air Pressure	Air Demand	kg/cm2	≥6	≥6	≥6	≥6
	Air Flow Rate	m3/min	≥0.5	≥0.5	≥0.5	≥0.5
Machine Dimensions	Floor Space (L×W×H)	mm	3600×3200×3200	3400×4200×3500	3400×4200×3500	3800×4200×3500
	Machine Weight (Approx.)	kg	9000	13500	16500	18500
Note	Technical parameters are subject to change without prior notice.
